Vani Hdg Bolt Grade 4.6

Get a Price/Quote

Product Details:

Corrosion Resistant Yes
Capacity High load bearing capability
Hardness 120 170 HV
Shape Hexagonal
Thread Type Metric Coarse Thread
Tensile Strength 400 560 MPa
Grade 4.6
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Vani Hdg Bolt Grade 4.6 Price And Quantity

Vani Hdg Bolt Grade 4.6 Product Specifications

Shape Hexagonal
Head Type Hex Head
Hardness 120 170 HV
Application Construction, Industrial fittings, Structural connections
Thread Type Metric Coarse Thread
Drive Type External Hex
Feature Durable, Rust Resistant
Tolerance 0.2 mm
Standard IS 1363 / DIN 933
Fasteners Type Bolt
Load Capacity Up to 5 tons depending on size
Capacity High load bearing capability
Finish Zinc Coated / Hot Dip Galvanized
Corrosion Resistant Yes
Tensile Strength 400 560 MPa
Grade 4.6
Torque As per standard torque chart
Diameter M6 to M24
Surface Treatment Hot Dip Galvanized (HDG)
Thickness Standard as per size
Material Carbon Steel

Product Description

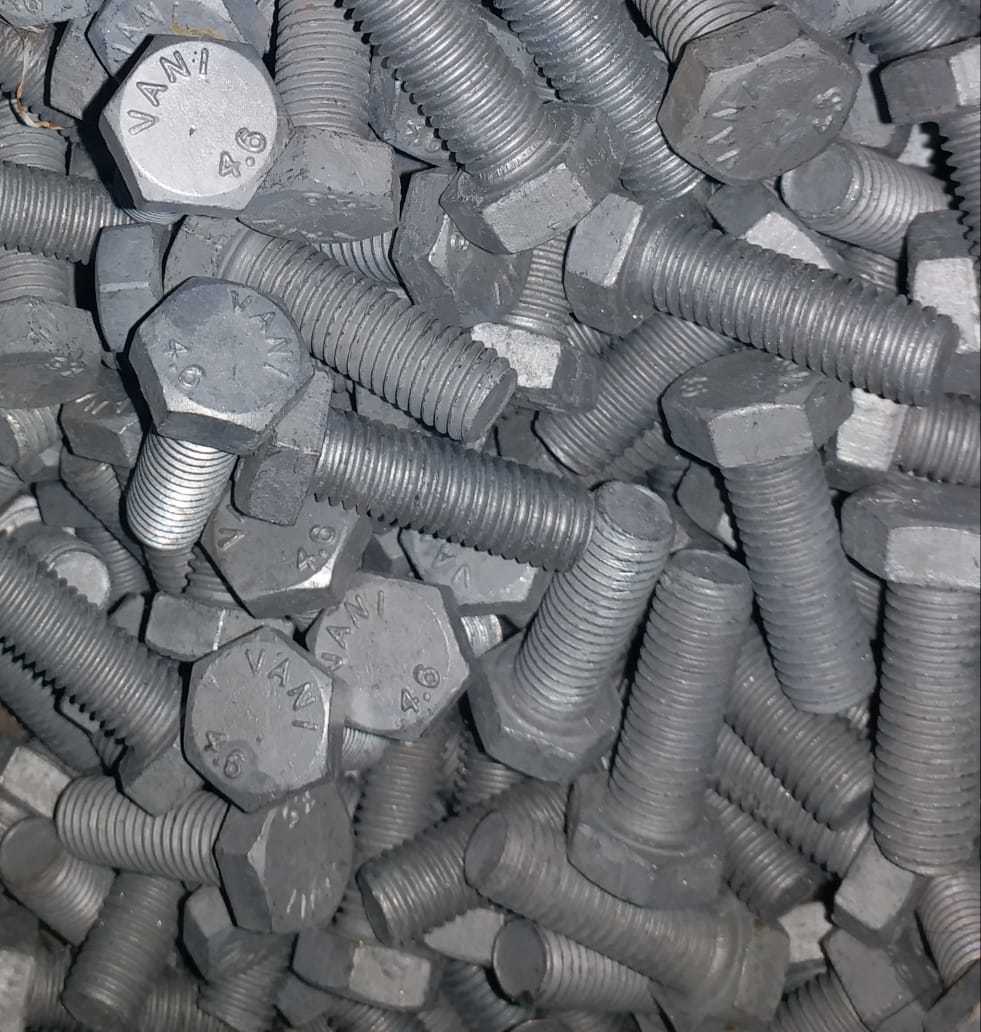

Vani HDG Bolt Grade 4.6

Material	Mild Steel
Brand	VANI
Size	M 8 to M48
Grade	4.6
Country of Origin	Made in India
Finish	HDG
Material Grade	4.6

HDG HEX BOLTS GRADE 4.6

We offer a wide variety of HDG HEX BOLTS GRADE 4.6

Diameter: METRIC 6MM to 24MM & IN INCHES 1/4" to 1"
Length: METRIC 20MM to 250MM & IN INCHES 3/4" to 13" full thread and half thread

Superior Durability for Challenging Conditions

Engineered for rigorous environments, Vani HDG Bolt Grade 4.6 provides reliable performance in outdoor, coastal, and industrial applications. The hot dip galvanized zinc coating acts as a shield against rust and corrosion, ensuring longevity even when exposed to moisture and harsh weather. This makes the bolts ideal for critical load-bearing structures and connections.

Versatile Sizing and Easy Installation

With a wide range of lengths from 12 mm to 200 mm and diameter options from M6 to M24, these bolts offer flexibility for various construction and industrial needs. The metric coarse thread and hex head design support standard tools and chart-based torque settings, guaranteeing quick, straightforward installation and maintenance without specialized equipment.

FAQ's of Vani Hdg Bolt Grade 4.6:

Q: How does the Vani HDG Bolt Grade 4.6 withstand corrosion in coastal and industrial environments?

A: The bolts are hot dip galvanized, which provides a thick zinc coating that protects the underlying carbon steel from rust and corrosion. This treatment makes them especially suitable for environments with high moisture or salt exposure, such as coastal areas and industrial facilities.

Q: What usage environments are these bolts recommended for?

A: Vani HDG Bolt Grade 4.6 is ideal for outdoor applications, coastal regions, and areas with industrial exposure. Their durability and corrosion resistance ensure reliable performance in construction, industrial fittings, and structural connections subjected to harsh or fluctuating conditions.

Q: When should I choose Grade 4.6 bolts over higher grade fasteners?

A: Grade 4.6 bolts offer a balance of moderate tensile strength (400-560 MPa) and fatigue resistance, making them suitable for general-purpose structural applications where extreme strength is not required. For projects demanding ultra-high strength, higher grade bolts may be more appropriate.

Q: Where are these bolts commonly used?

A: These bolts are commonly used in construction projects, industrial machinery assemblies, structural steel connections, and outdoor infrastructure. Their zinc coating and compliance with IS 1363/DIN 933 standards make them reliable for a wide range of large and small-scale installations.

Q: What is the process for ordering and packaging these bolts?

A: You can place orders based on your project requirements, as there's no fixed minimum quantity. The bolts are available in gunny bags or cartons for efficient handling and safe transport, ensuring you receive the needed quantity securely packaged.

Q: How does the temperature resistance of the bolts benefit my application?

A: Withstanding temperatures from -20C to +250C, Vani HDG Bolt Grade 4.6 functions well in extreme climates and industrial environments. This broad resistance ensures your connections remain stable and secure across varying temperature ranges.

Q: What are the key benefits of using these bolts in construction and industrial projects?

A: The bolts offer high load-bearing capacity, rust resistance, and durability. The external hex drive allows easy installation, while compliance with international standards and RoHS regulations ensures quality and safety for both local and export projects.
